Description
What the GE JVM3160DFCC Is

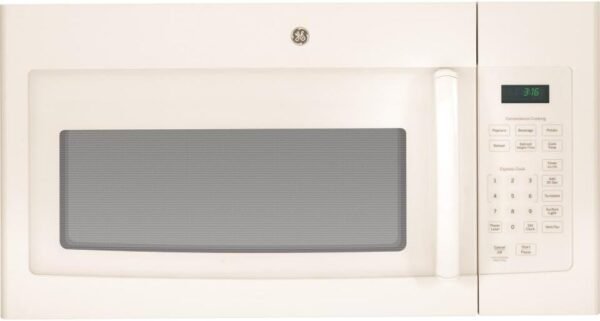

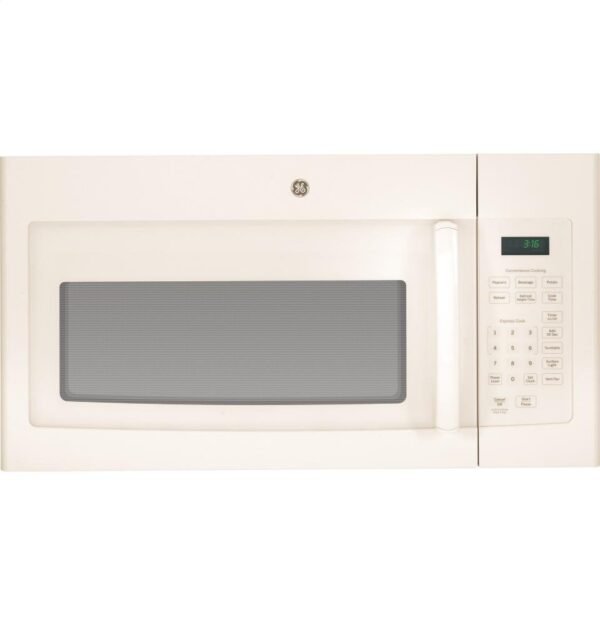

This is a standard over the range microwave: a 1.6 cubic foot oven that mounts on the wall and under a cabinet, directly above a range, and doubles as the kitchen’s extraction hood. GE rates it at 1000 watts under the IEC-705 standard with 10 power levels, and fits a glass turntable that can be switched off for large or oddly shaped dishes.
The finish is bisque, an off white shade also described as beige in the specification data. That is worth flagging on its own, because bisque appliances are increasingly hard to match, and a kitchen with existing bisque appliances is the main reason to seek this specific model out. GE sells the same platform in white as the JVM3160DFWW and in stainless steel as the JVM3160RFSS.
Installation Is The Serious Part

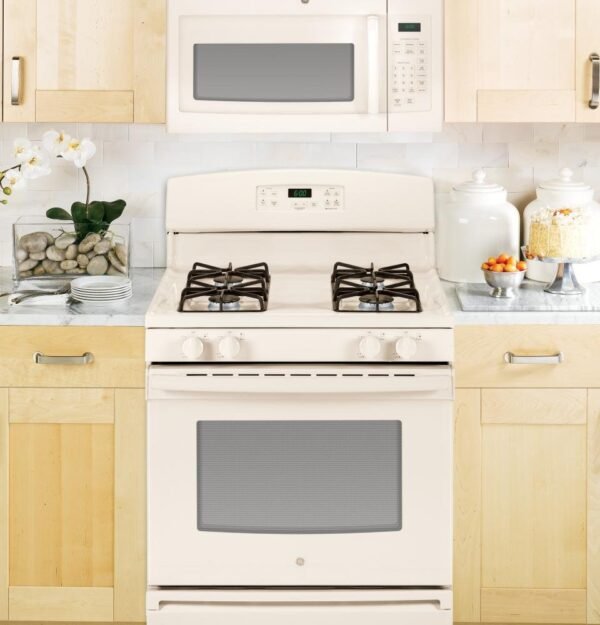

An over the range microwave is a 60 pound appliance mounted above head height over a cooking surface, and its installation carries requirements the listing does not publish.
The critical one is the minimum clearance between the bottom of the microwave and the cooking surface below. That figure exists for a reason, it differs depending on whether the range beneath is electric or gas, and it is set by the manufacturer’s installation instructions. This listing does not state it. Do not install this appliance without reading GE’s installation instructions for the JVM3160 series and confirming the clearance for the specific range underneath.
Mounting also requires a wall plate fixed into studs and fixings through the cabinet above. GE describes the installation type as Easy Mount, which refers to its mounting system rather than meaning the job is trivial. It is a two person task at minimum, and in many households it is work for an installer.
The Venting Question
The listing states a two speed 300 CFM venting system and says nothing else about it. Over the range microwaves are normally convertible between three arrangements: ducted vertically through the cabinet and roof, ducted horizontally through the exterior wall, or recirculating, where the air passes through a charcoal filter and returns to the kitchen.
Those are very different outcomes. A ducted installation removes steam, grease and odors from the house. A recirculating one filters odors and returns the moisture and heat to the room, which is much less effective over a range that gets heavy use. The listing does not say which arrangement this unit ships configured for or which are supported, and it does not mention a charcoal filter. Establish that from GE’s installation instructions, and note that a recirculating setup means a filter to replace periodically.
At 300 CFM the extraction is modest by design. Households doing a lot of high heat cooking should be comparing a dedicated range hood such as the FOTILE JQG7505, which moves considerably more air, and accepting that the microwave then needs a home elsewhere.
Cooking Features
One thousand watts at 1.6 cubic feet is a sensible pairing for a microwave of this size, and GE quotes the figure against IEC-705, which is the standard test method rather than a marketing number. Ten power levels allow proper control for defrosting and gentle reheating.

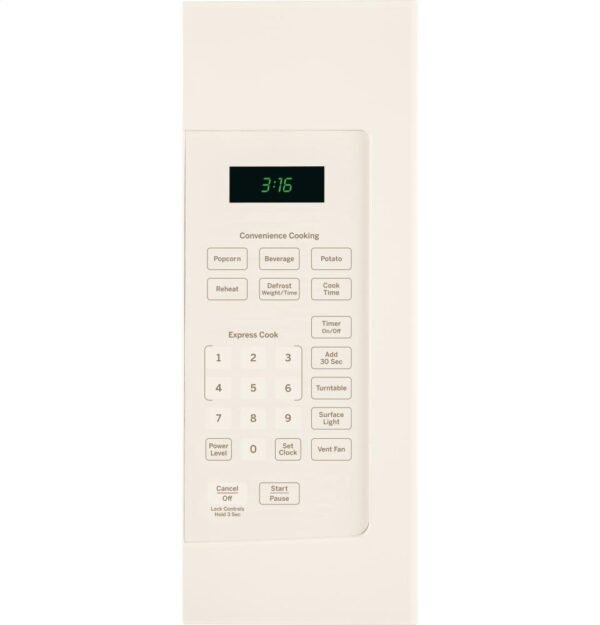

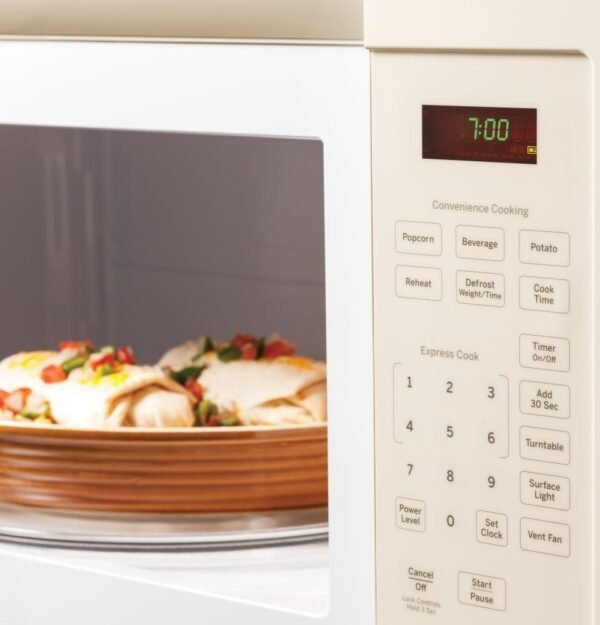

Convenience settings cover popcorn, beverage, potato and reheat, with auto and time defrost by weight or time. An express cook function runs one to six minutes at a single button press. The turntable on and off control is more useful than it sounds, since a rectangular dish that catches on the cavity wall is a common annoyance on smaller microwaves.
What is not on the list is equally worth noting. There is no convection element, no air fry mode, no sensor cooking and no inverter power control, all of which appear further up the over the range range. This is a straightforward microwave with a hood attached, and for a great many kitchens that is exactly the right specification.
Highlights
- 1.6 cubic feet of cavity with 1000 watts under IEC-705 and 10 power levels.
- Glass turntable with an on and off control for large dishes.
- Two speed 300 CFM venting system integrated into the appliance.
- Convenience cooking settings plus auto and time defrost.
- Express cook from one to six minutes at a single press.
- Bisque finish, useful for matching an existing bisque kitchen.
- Runs on a standard 120 volt supply.
Things To Consider
The dimensions appear three different ways. GE’s description gives 29.875 inches wide, 16.5 high and 15.25 deep. One specification field gives 15.56 deep by 29.88 wide by 16.13 high. Another gives 33.5 by 19.4 by 20.2 inches, which is almost certainly the shipping carton rather than the appliance. Use the description figures and confirm them against GE’s specification sheet, because an over the range microwave has to fit a cabinet opening exactly.
The lighting is described two ways as well: the feature bullet says an incandescent interior oven light while the specification field says LED. Those are different bulbs with different replacement parts.
The model information field simply reads MICROWAVES rather than a model number, the feature bullets are generic filler stating that the product is easy to use and highly durable, and the special feature field contains raw JavaScript from the retail page. A ten year warranty on major components is mentioned in one field, which would be unusual for this class of appliance and should be verified with GE before it influences a purchase.
Beyond the data, the fundamental limitation of the format applies: a microwave mounted over a range is a compromise between two appliances, and it is worse at extraction than a real hood and less convenient to reach than a countertop oven. Households with the counter space may prefer a machine from the countertop microwave ovens category, and those replacing an existing over the range unit will find the alternatives in the over the range microwave ovens category.
Who Should Buy It, And Who Should Not
It suits a kitchen that already has an over the range cutout, particularly one with bisque appliances that need matching, and where light to moderate cooking makes 300 CFM sufficient.
It is the wrong purchase for a household that cooks heavily and needs real extraction, for anyone unwilling to confirm the clearance above their specific range before installation, and for anyone who wants a microwave at a comfortable working height.
