Description
What the FOTILE JQG7505 Is

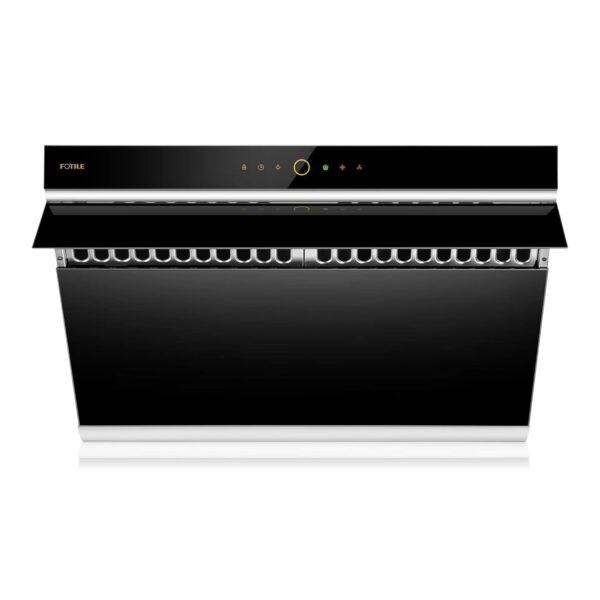

The JQG7505 is a 30 inch side draft range hood in onyx black tempered glass, mountable either to a wall or under a cabinet. Side draft is the distinguishing feature. Rather than pulling fumes straight upward into a canopy, the hood draws them sideways across the cooking surface through a slanted vent panel that opens automatically.
The practical advantages of that geometry are real. There is no canopy hanging at forehead height over the front burners, so the cook can stand upright at the pan, and the capture point sits closer to the level where steam and grease actually leave the pan rather than several feet above it.

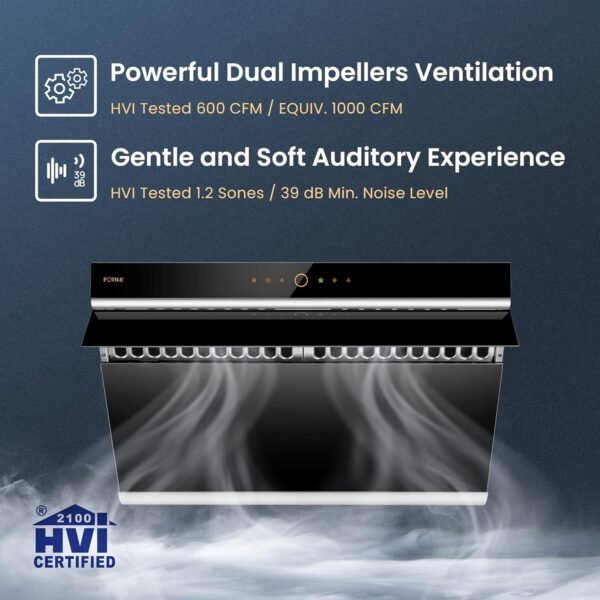

FOTILE lists dual DC motors, a rated 1000 cubic feet per minute of airflow, a maximum static pressure of 540 pascals and a noise level of 38.5 decibels. The specification also lists HVI and ETL among the standards met. HVI certification matters more than most badges on a hood, because it relates to independently verified airflow and sound ratings rather than manufacturer claims, though the listing does not state which specific figures carry that certification.
The Airflow Figure Has Installation Consequences
One thousand cubic feet per minute is a large extraction rate for a domestic kitchen, and that is worth thinking through before purchase rather than after installation.
Two things follow. First, a hood at that rate needs a properly sized duct with a short, straight run and a correct exterior termination. The listing includes a duct kit but does not publish the duct diameter or the maximum run, so both belong to FOTILE’s installation manual. Undersized ducting will strangle the airflow and make the hood loud rather than effective.
Second, and more importantly, high extraction rates interact with building codes and with any combustion appliance in the house. Pulling a large volume of air out of a sealed home can create enough negative pressure to affect the draft on a gas water heater, furnace or fireplace, and many jurisdictions require a make up air provision above a certain extraction rate. This is a matter for a local installer or building inspector, not for a product listing, and it should be settled before the hood is bought. FOTILE states that it offers installation services in over 50 major cities, which is one route to getting that assessed properly.
The Noise Claim
A 38.5 decibel figure alongside 1000 cubic feet per minute is an unusual combination, and FOTILE’s marketing frames it as the result of dual DC motors and the side draft design. No speed setting is attached to the decibel figure on this listing, and hoods are normally quiet at low speed and loud at high speed, so the number should be read as a best case rather than the sound at full extraction. HVI listed sound ratings, where they apply, are measured under a defined method, which is why that certification is worth confirming.
Controls And Capture

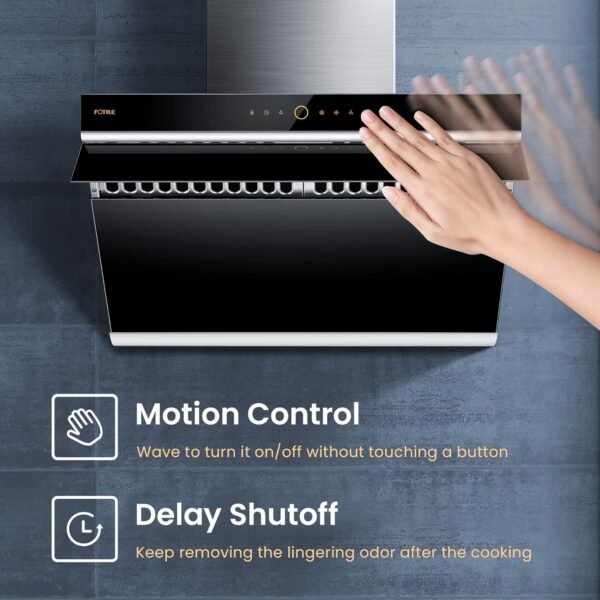

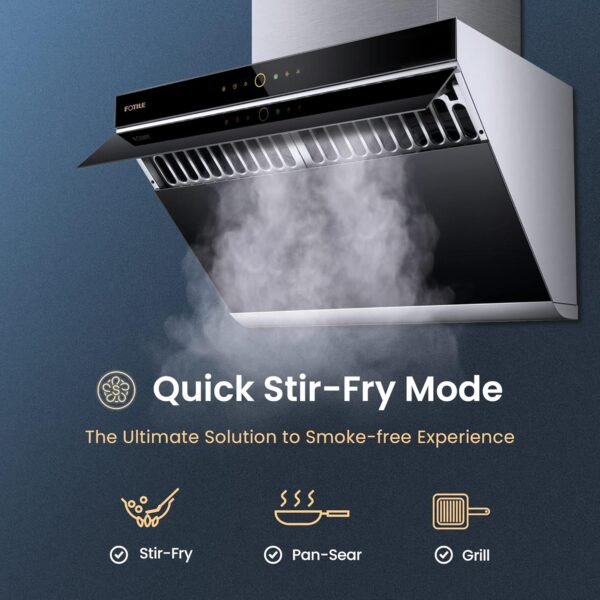

Control is by touchscreen with four speeds, plus a stir fry mode entered by holding the control for two seconds. Infrared motion activation lets the hood be switched on and off with a wave, which keeps a glass panel free of greasy fingerprints and is genuinely useful mid cooking.
FOTILE states that the dual centrifugal motor and impeller arrangement separates up to 95 percent of grease and fumes with a 98 percent odor reduction, and that the extraction rate is 30 percent higher than a traditional range hood. Those are manufacturer figures with no stated test method or named comparison model, and the phrase up to is doing work in the first one. They describe design intent rather than measured performance in a particular kitchen.
The filter is a baffle type with a removable grease tray. Baffle filters are the right choice for heavy cooking: they separate grease by making the airstream change direction sharply, and they can be washed rather than replaced. That is a real running cost difference against mesh filters, which clog faster and are often thrown away, and against the charcoal filters used in recirculating microwave hoods such as those in the over the range microwave ovens category.
Highlights
- Side draft design with an automatic opening vent panel, no canopy overhead.
- Rated 1000 cubic feet per minute with dual DC motors.
- Published noise level of 38.5 decibels and static pressure of 540 pascals.
- HVI and ETL listed among specifications met.
- Touchscreen with four speeds plus a stir fry mode, and infrared motion activation.
- Washable baffle filter with a removable oil tray.
- Duct kit, filter, oil tray and mounting bracket supplied, on a 120 volt supply.
Things To Consider
This is a ducted hood. It has to exhaust outside, and there is no mention of a recirculating option with a charcoal filter, so a kitchen with no possible duct route cannot use it as designed.
The noise figure is stated as 38.5 decibels in the specification table and 39 decibels in the marketing text, with no speed setting attached to either. The grease and odor percentages carry no test method. The comparison claim of 30 percent better extraction names no baseline product.
At 63.9 pounds this is a heavy appliance mounted at head height, and it needs fixing into structure rather than into cabinet panels alone. FOTILE’s warranty language on the listing includes a superlative claim about its service network that this review will not repeat, since no evidence accompanies it.
Finally, a hood at this extraction rate is aimed at serious cooking. Households doing light cooking on a modest cooktop may be better served by an over the range microwave with an integrated fan, such as the GE JVM3160DFCC, which combines two appliances at the cost of far less extraction. Buyers building a custom hood enclosure should look at an insert instead, such as the Zephyr Monsoon I, and the wider set sits in the range hoods category. Pairing with a smooth top electric surface such as the LG LCE3010SB is a common combination.
Who Should Buy It, And Who Should Not
It suits a household that cooks with high heat, has or can create a proper duct route, and wants the head clearance a side draft design gives over a conventional canopy. The certification listings and the published static pressure figure put it ahead of most hoods on documentation.
It is the wrong purchase for a kitchen that cannot be ducted, for a light cooking household that would never use the extraction, or where local code requirements around make up air have not been checked.
