Description
The GE JVM3160DFWW is the white version of GE’s long running entry level over the range microwave. It carries a 1.6 cubic foot cavity, 1000 watts under the IEC-705 test procedure, a two speed 300 CFM venting system, ten power levels, auto and time defrost, a turntable that can be switched off, control lock, an add 30 seconds button and cooktop lighting with an optional nightlight setting.
The white finish is worth mentioning first because it is genuinely hard to find. Nearly every over the range microwave sold is stainless steel or black stainless, which looks wrong in a kitchen with white cabinetry and white appliances. For anyone replacing a white unit and matching an existing white range and refrigerator, the color is the reason this model exists alongside the otherwise identical stainless steel JVM3160RFSS.
Cooking Features and Controls
GE lists 1000 watts measured under IEC-705, which is the standardized test procedure rather than a marketing number, across ten power levels. Convenience cooking controls handle common items, and defrost works either automatically from an entered weight or manually by time.

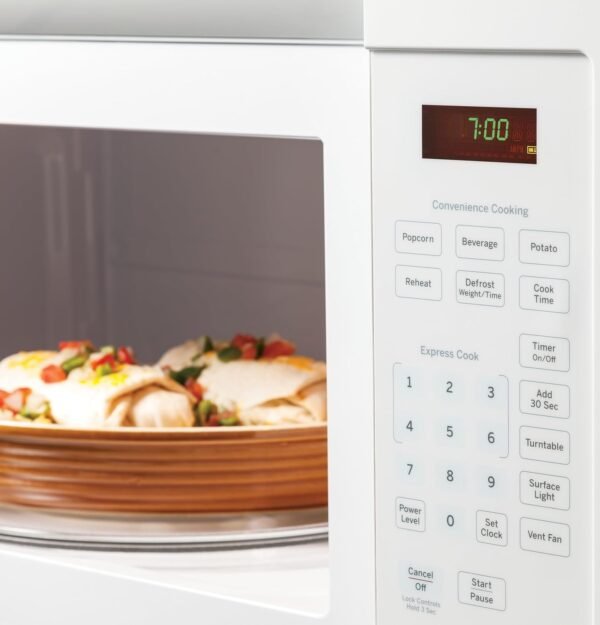

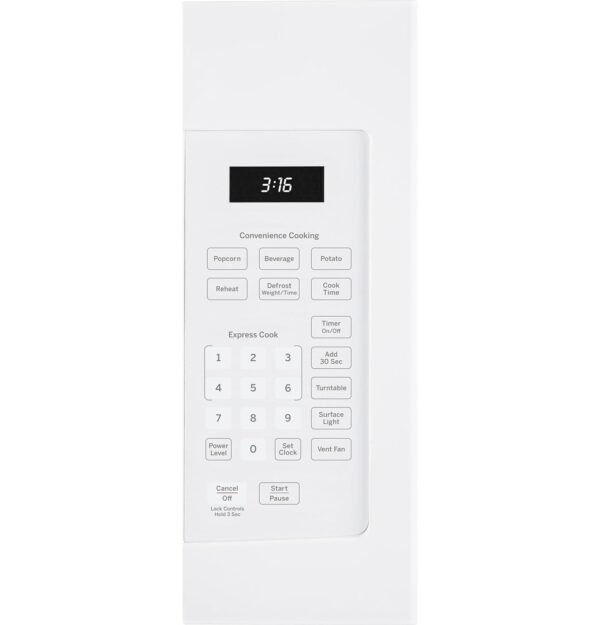

The control feature list includes lock controls, turntable on and off, start and pause, power level and an add 30 seconds button. The turntable control is more useful than it sounds: a rectangular casserole dish that cannot rotate freely within the cavity can still be cooked with the turntable stationary, and ovens without that control simply cannot take those dishes.
Cooktop lighting sits under the unit to illuminate the range below, with an optional nightlight setting that runs it at reduced brightness. In a kitchen used late at night that is a small feature that gets used constantly.
Ventilation
The venting system is rated at 300 CFM across two speeds. That is the standard entry level specification and it is adequate for boiling, simmering and everyday frying. It is not enough for sustained high heat searing or wok cooking, where a 400 CFM system such as the one on the GE JVM7195SKSS would cope better, and no over the range microwave matches a properly sized range hood because the body sits higher and further forward than a hood canopy.
The listing does not state whether the unit ships configured to duct outside or to recirculate through a charcoal filter, nor which duct transitions are included. That should be established before installation day.
Installation and Electrical Requirements
This mounts on a wall bracket in a standard 30 inch cabinet opening, secured through the cabinet above the cooktop, at a listed width of 29.88 inches. GE describes the installation type as “Easy Mount”, which is its bracket system, but this is still an overhead installation above a cooktop and a two person job.
The listing specifies 120 volts and identifies the fuel type as electric, so it plugs into a standard household outlet normally located inside the cabinet above. No amperage figure or dedicated circuit requirement is published. Where new ductwork has to be cut, or where a gas cooktop sits below, the installation belongs with a qualified installer working from GE’s printed instructions.
Highlights
- 1.6 cubic foot capacity in a standard 30 inch over the range width.
- 1000 watts under the IEC-705 test procedure, ten power levels.
- Two speed, 300 CFM venting system.
- Turntable on and off control for oversized dishes.
- Auto and time defrost, control lock, start and pause, add 30 seconds.
- Cooktop lighting with an optional nightlight setting.
- White finish with electronic touch controls, 120 volt operation.
Things To Consider
The listed item weight is 3.94 pounds. That is impossible for a 1.6 cubic foot over the range microwave, and the closely related stainless model is listed at 40 to 63 pounds. The weight field is corrupt and should be disregarded entirely. Plan the installation on the assumption that this is a 55 to 65 pound overhead lift and confirm the real figure from GE’s specification sheet.
The listing also states a “Free 10yr Warranty on Major Components”, while the otherwise identical stainless model states a one year warranty. Those cannot both be right for the same appliance in different colors. Get the warranty terms from GE directly rather than from the listing.
Two further fields are nonsense. “Burner type: Ceramic” is a cooktop specification with no meaning on a microwave, and the “Special Feature” field contains a fragment of JavaScript. Both are imported data errors.
The dimensions are given two ways, 29.88 by 15.25 by 16.5 inches and 29.88 by 15.56 by 16.13 inches. The width agrees, which is what has to match the cabinet, but work to GE’s printed template for the rest.
The “Inner Material Type” field reads “Glass” while the “Material Type” reads “Metal”, which describes the turntable and the cabinet rather than the cavity lining, so neither field says what the interior surface actually is.
Feature wise, there is no sensor cooking, no convection and no air fry on this model. Buyers who want sensor control should look at the GE JVM6175SKSS.
It is also worth being realistic about what a white appliance means over time. White plastic and painted surfaces above a cooktop are exposed to heat, steam and cooking grease, and they show discoloration in a way that stainless steel does not. Regular cleaning of the underside and the filter area matters more on a white unit than on a stainless one, simply because the results of neglecting it are more visible.
Who It Suits and Who Should Look Elsewhere
This is the right choice for a white kitchen. That sounds trivial and it is not: matching a white range and refrigerator is a real constraint and the options are few. Beyond the color, it is a simple, widely stocked, long running appliance with easy parts availability, adequate ventilation for everyday cooking and the useful turntable on and off control.
It is the wrong choice for a household that cooks over high heat, where 300 CFM will not keep up, or that wants sensor cooking. The rest of the range, in stainless and other finishes, sits in the over the range microwave category, and households without a suitable cabinet above the cooktop should look at the countertop microwave oven range.
